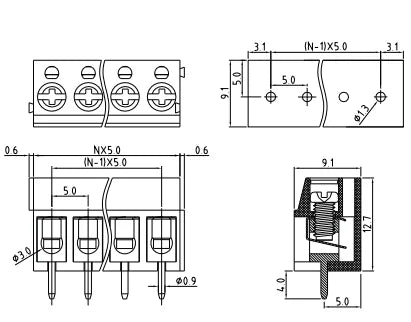

QTB-250V Compression Crimp Screw Terminal Blocks 250V 15A PA66 PCB Connector 5.00mm Pitch 2P-24P
QTB-250V Compression Crimp Screw Terminal Blocks 250V 15A PA66 PCB Connector 5.00mm Pitch 2P-24P
Regular price
$7.50 USD
Regular price
$7.50 USD
Sale price
$7.50 USD
Taxes included.
Products Description

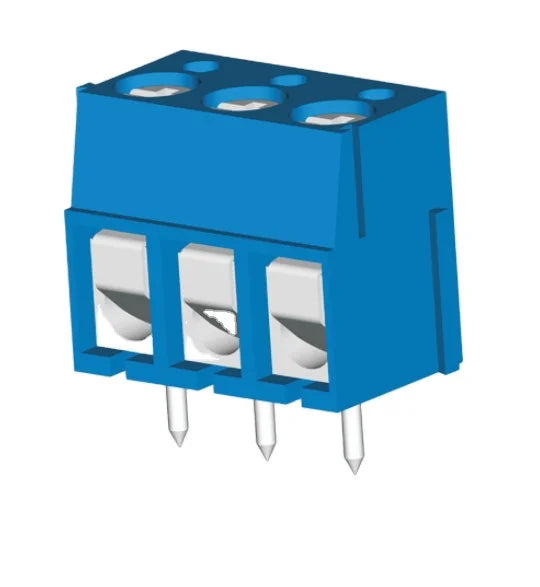

PCB terminal block
The QPV series use a frame-type wiring screw with the direction perpendicular to the incoming line, which is very suitable for incoming lines at the rear of the chassis and is easy to operate.Optional spacing
Available in: 3.5mm/3.81mm/5.0mm/5.08mm/7.62mm.
Easy to solder, stable and reliable, spiral wiring is not easy to off-line
Product name |
Terminal block |
Color |
green |
Standard |
UL; IEC |
Poles |
2P-24P |
Pitch |
5.0mm |
Voltage Rating |
250V |
Current Rating |
15A |
Wire Range |
22-14AWG/2.5mm2 |
Withstanding Voltage |
AC2000V/Min |
Rated torque |
0.4N.m(4.4Lb-Ln) |
Ambient Temperature |
-30 centigrade-++120 centigrade |
Strip Length |
|
Housing |
PBT.UL94V-0 |
Spring |
- |
Pin Header |
Brass, Tin Plate |
Screws |
M2.5, steel, A3 Zn plated |
Cage |
Brass, Nickel Plated |
