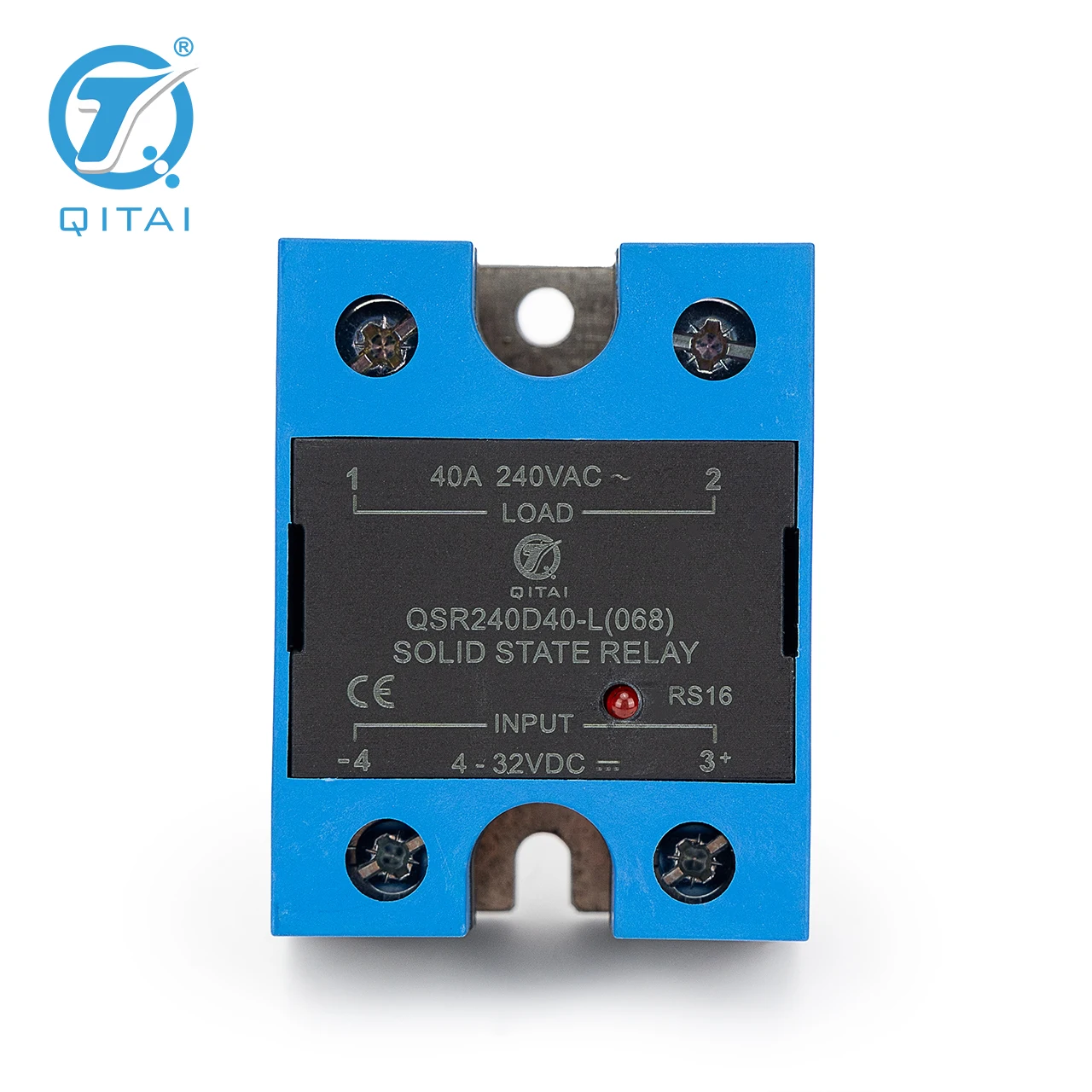

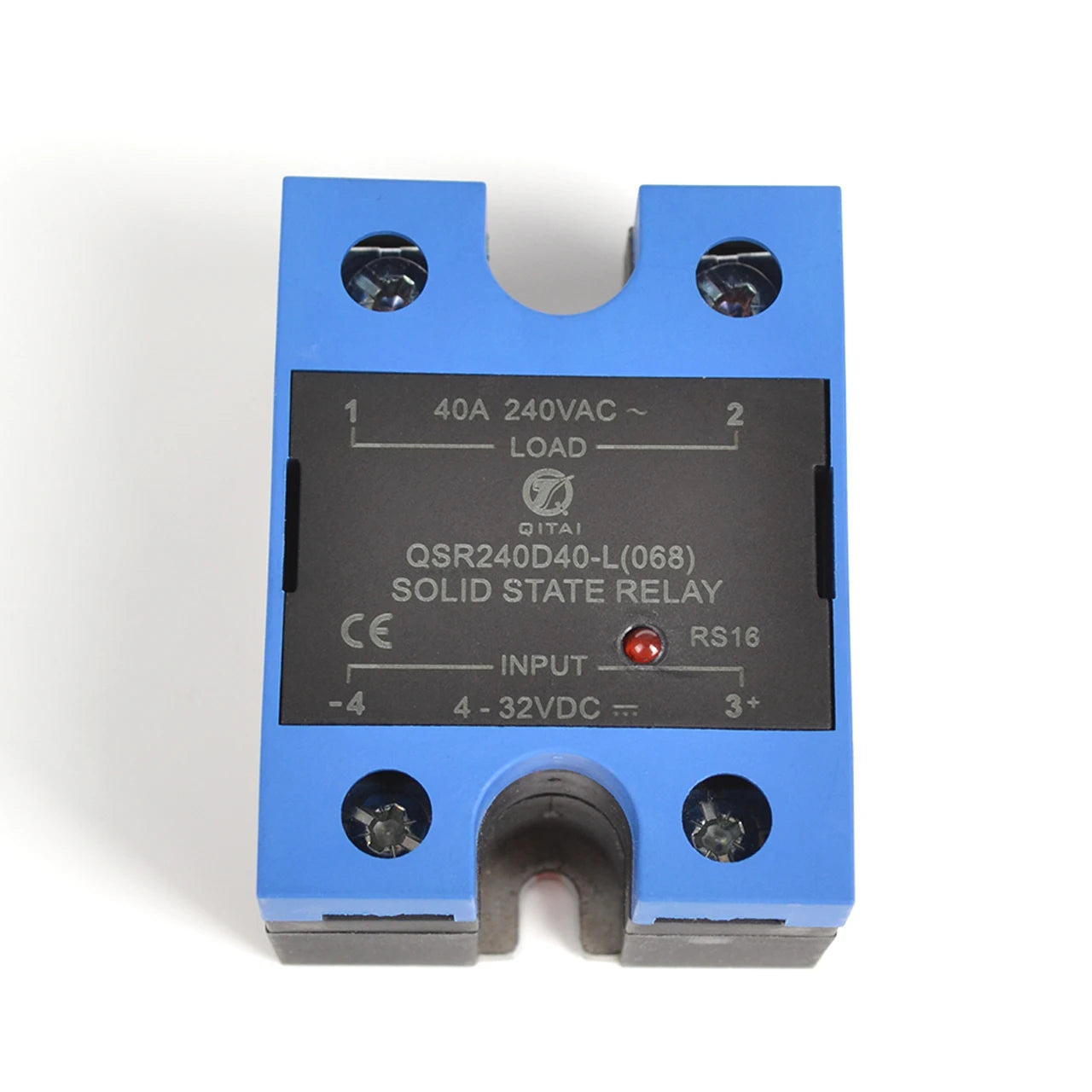

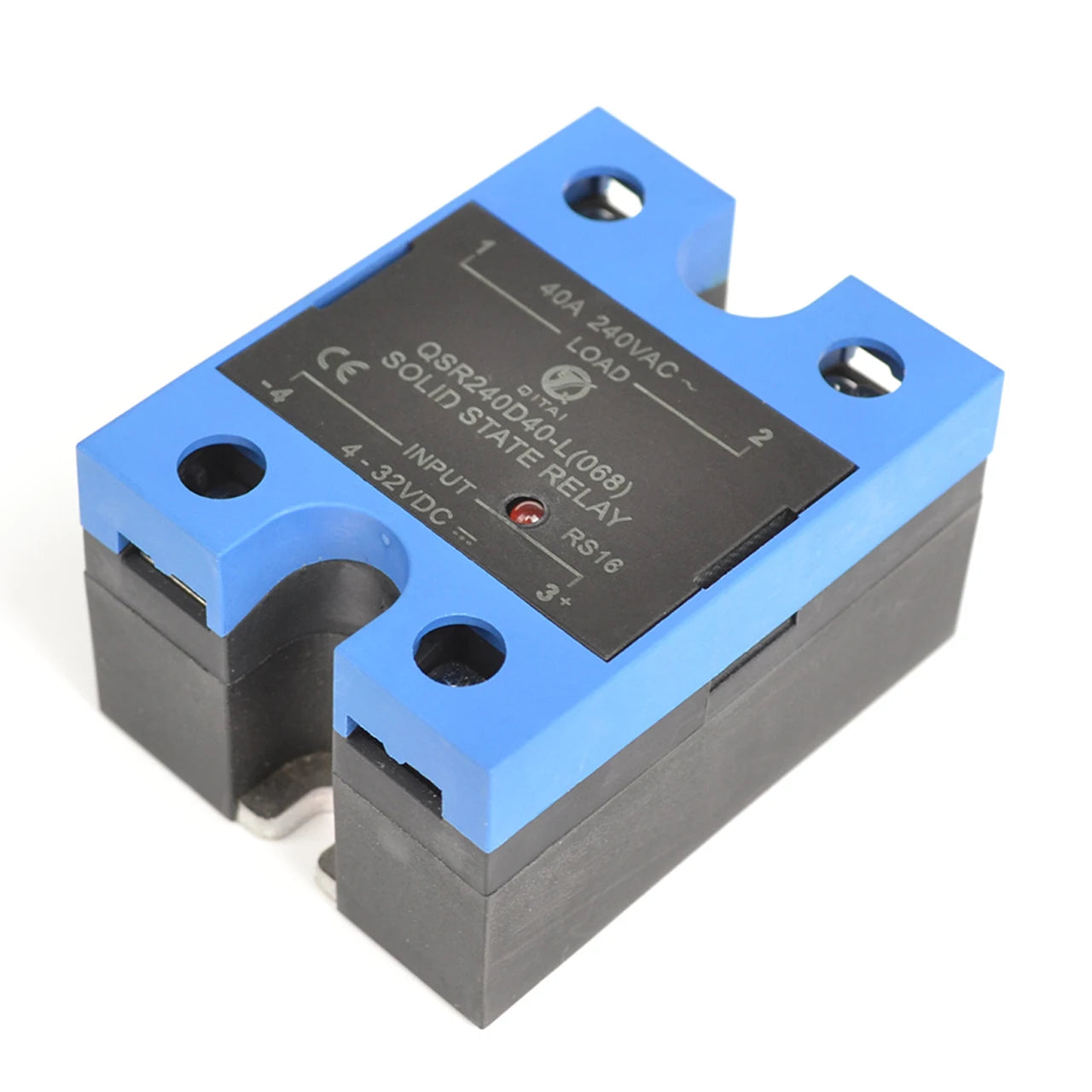

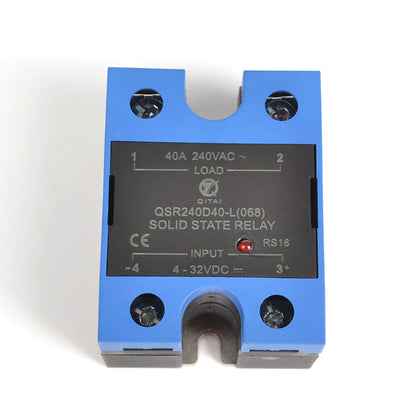

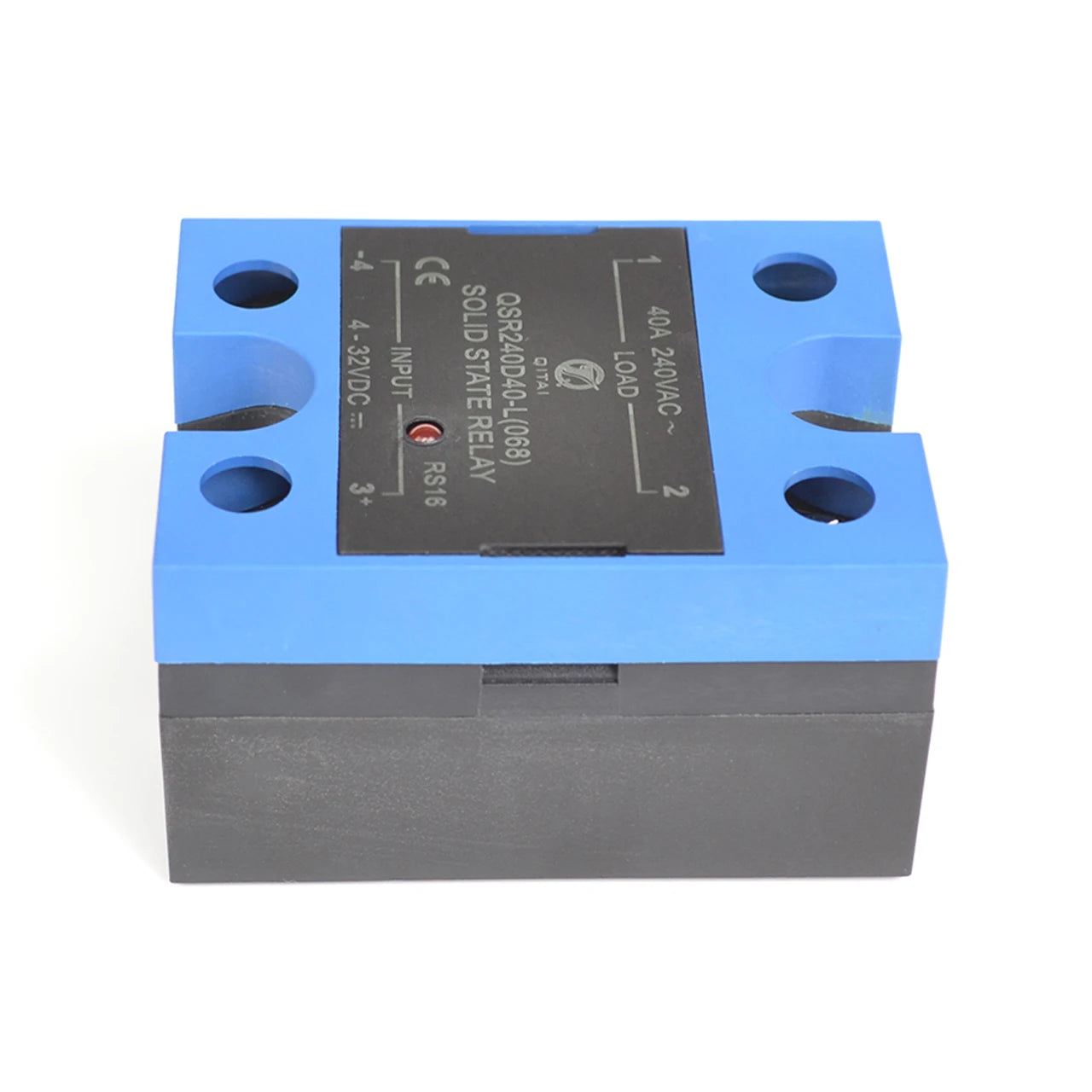

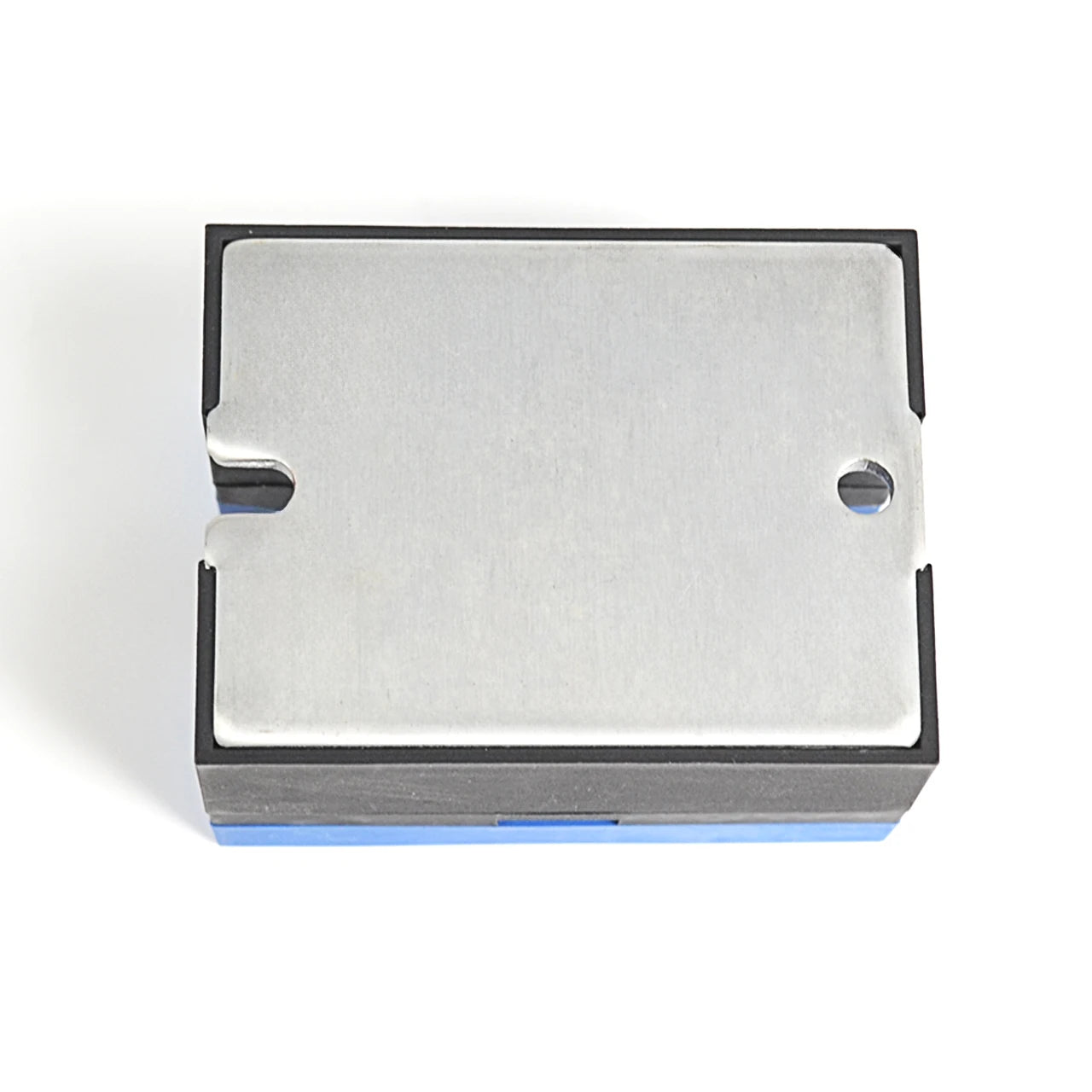

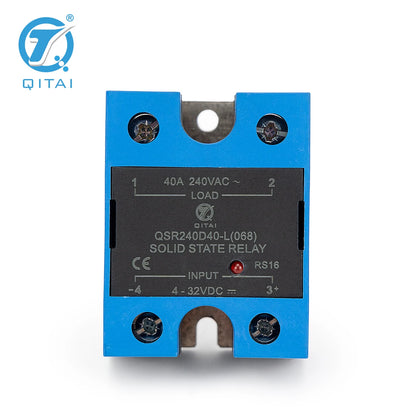

QSR240D40-L(068) 40A 240VAC SSR Single Phase AC Output Solid State Relay

登录后查看价格

Taxes included.

Products Description

Single Phase AC Output Solid State Relay

QSR240D40-L(068)

Features

*Zero-crossing or random turn-on switching

*Load 10A-100A @ 48-280VAC

*TRIAC or SCR output

*DC or AC input

*Dielectric withstand voltage 4000VACrms

*LED indicator light

*Optional RC, MOV protection and TVS

Product Description
QSR series single-phase solid-state relays use TRIAC or SCR structure internally, and are widely used in various industrial applications, suitable for resistive, inductive and capacitive loads. The input and control voltages are 4-32VDC or 90-280VAC. The load voltage is 48-440VAC, and the output rated current is 10A, 25A, 40A, 60A and 80A. If there is no special requirement, 10A and 25A are TRIAC structures, and 40A and above are SCR structures.

Application Suitable for high and low temperature chambers,plastic Machinery, incubator, oiling machine, air conditioner, elevator, Lighting, fountain controller and other occasions.

Model	QSR380D25, QSR380D40, QSR380D60, QSR380D80
Features	- Zero-crossing/random conduction
		- Load current: 10A-100A @48-440VAC
		- TRIAC/SCR output
		- DC/AC input
		- Optional RC/MOV/TVS protection
Input Parameters	- Control voltage: 4-32VDC or 90-280VAC
		- Minimum on voltage: 4VDC/90VAC
		- Maximum input current: 25mA (DC), 15mA (AC)
Output Parameters	- Load voltage: 48-440VAC
		- Maximum surge current: 150A @10ms (10A model)
		- Maximum on-state voltage drop: 1.6Vrms
Technical Specifications	- Dielectric withstand voltage: 4000Vrms
		- Operating temperature: -30°C~+80°C
		- Weight: 96g
Applications	Industrial automation, lighting control, fountain systems

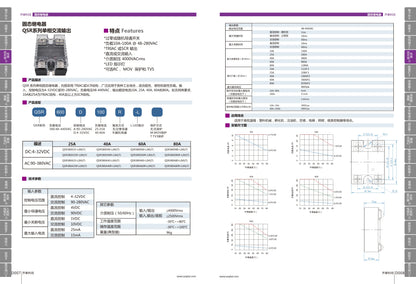

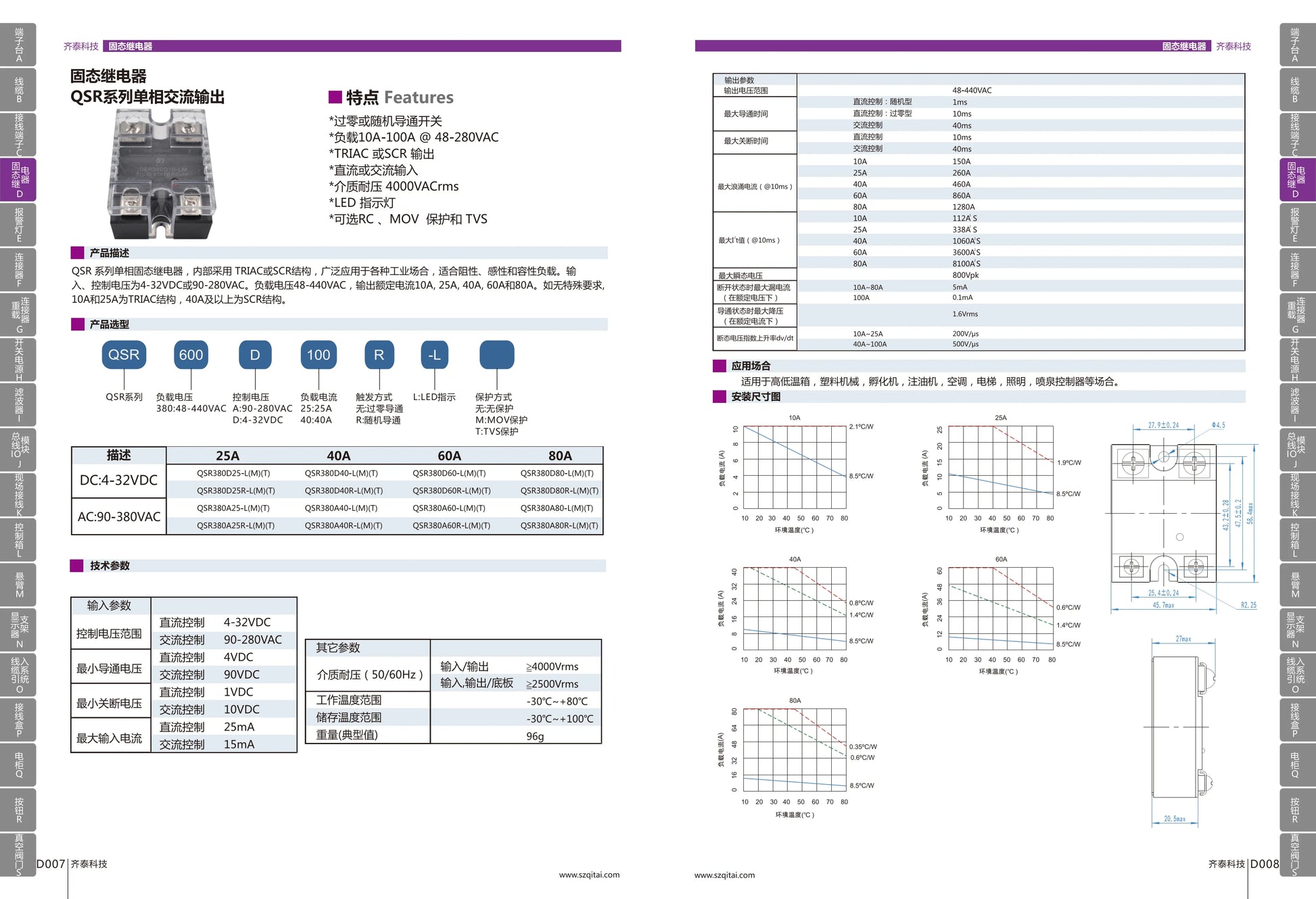

Specification

Single Phase AC Output Solid State Relay
