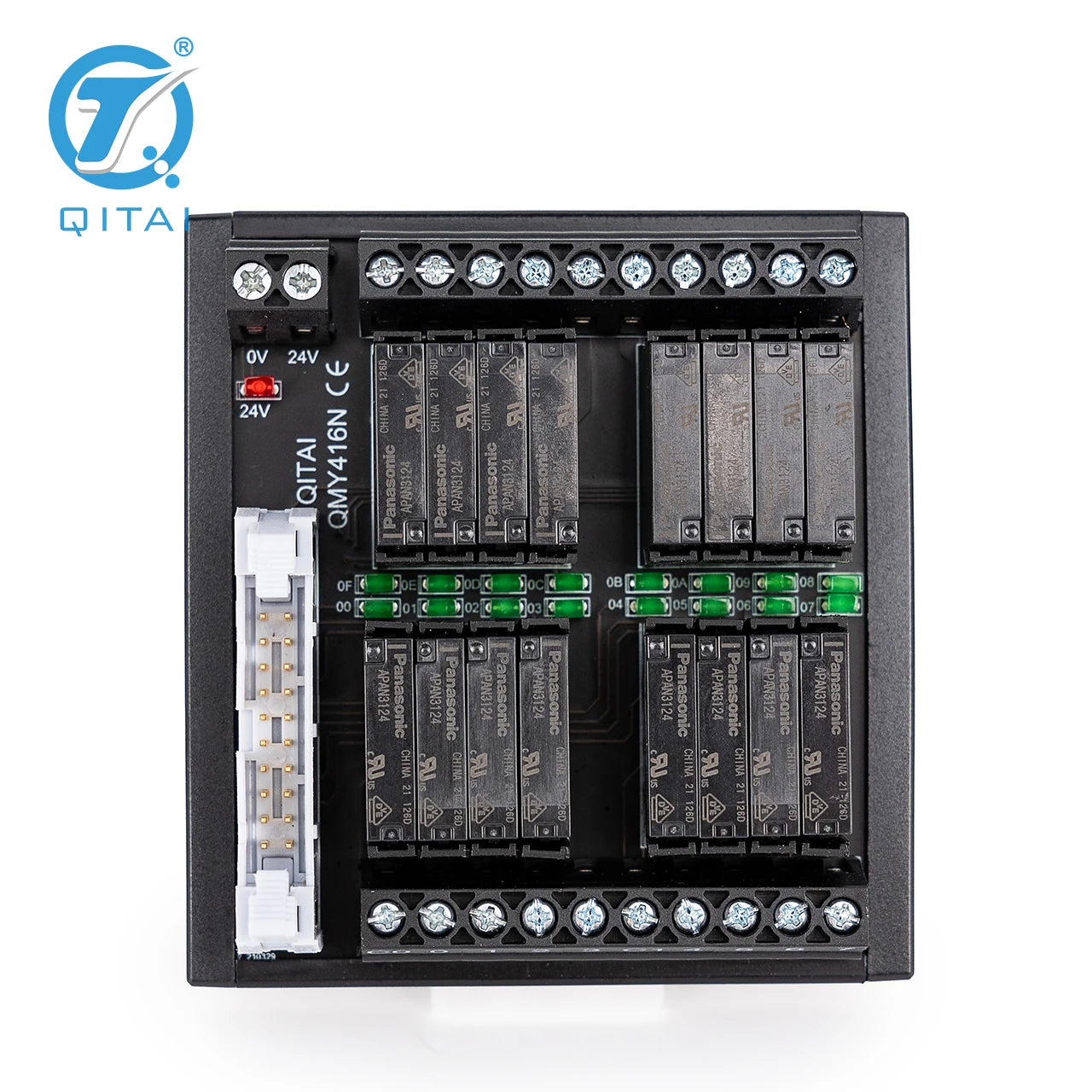

QMY416N QITAI Screw Input Output DC24V Relay Module 16 SSR PLC Terminal Module
QMY416N QITAI Screw Input Output DC24V Relay Module 16 SSR PLC Terminal Module
Regular price
$44.29 USD
Regular price
$44.29 USD
Sale price
$44.29 USD
Taxes included.
Specification
Input Specifacations |
||
Rated Voltage |
DC24V |
|
For wire |
1.5mm2 following/AWG16 |
|

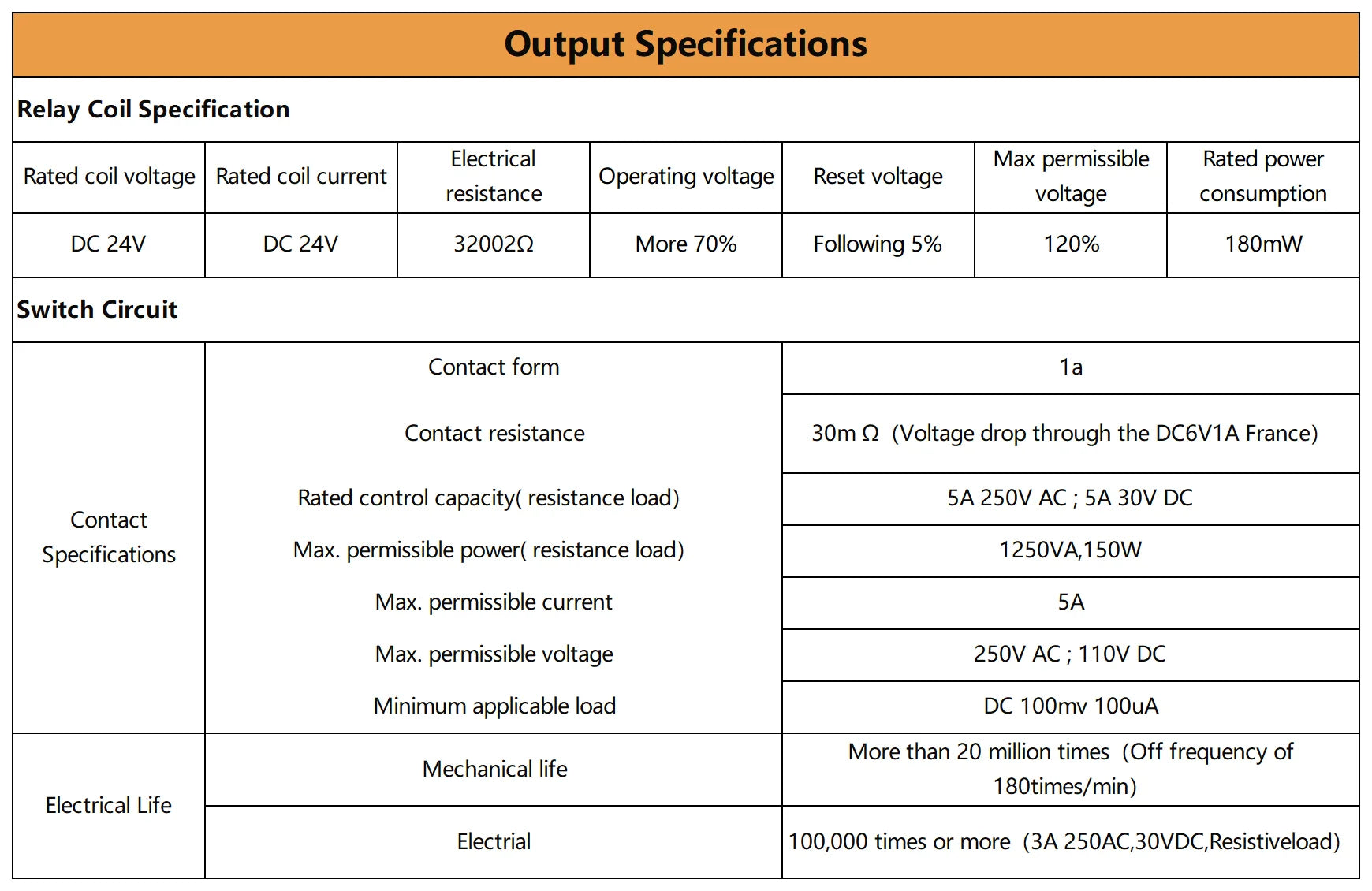

1. Coil & Electrical Performance
* Rated Coil Voltage: DC 24V
* Rated Operating Current: 7.5mA
* Coil Resistance: 3200Ω
* Operate Voltage: ≥70% of the rated voltage (ensures stable activation)
* Release Voltage: ≤5% of the rated voltage (precise deactivation response)
* Maximum Allowable Voltage: 120% of the rated voltage (overvoltage tolerance)
* Nominal Operating Power: 180mW
2. Contact Specifications (Per Relay Contact)
* Contact Arrangement: 1a (Single-pole, single-throw, normally open configuration)
* Initial Contact Resistance: 30mΩ (tested via DC 6V/1A voltage drop method, compliant with French test protocols)
* Nominal Switching Capacity (Resistive Load): * AC: 5A @ 250V
* DC: 5A @ 30V
* Maximum Switching Power (Resistive Load): 1250VA (150W)
* Maximum Switching Current: 5A
* Maximum Switching Voltage: * AC: 250V
* DC: 110V
* Minimum Switching Capacity: DC 100mV @ 100μA (sensitive low-power switching capability)
3. Service Life
* Mechanical Life: Exceeds 20 million cycles (tested at 180 operations per minute)
* Electrical Life: 100,000 cycles or more (under conditions: 3A @ 250V AC / 30V DC, resistive load)
These specifications ensure the relay delivers consistent performance across industrial, automotive, or IoT applications requiring
robust switching with precise control.
* Rated Coil Voltage: DC 24V
* Rated Operating Current: 7.5mA
* Coil Resistance: 3200Ω
* Operate Voltage: ≥70% of the rated voltage (ensures stable activation)
* Release Voltage: ≤5% of the rated voltage (precise deactivation response)
* Maximum Allowable Voltage: 120% of the rated voltage (overvoltage tolerance)
* Nominal Operating Power: 180mW
2. Contact Specifications (Per Relay Contact)
* Contact Arrangement: 1a (Single-pole, single-throw, normally open configuration)
* Initial Contact Resistance: 30mΩ (tested via DC 6V/1A voltage drop method, compliant with French test protocols)
* Nominal Switching Capacity (Resistive Load): * AC: 5A @ 250V
* DC: 5A @ 30V
* Maximum Switching Power (Resistive Load): 1250VA (150W)
* Maximum Switching Current: 5A
* Maximum Switching Voltage: * AC: 250V
* DC: 110V
* Minimum Switching Capacity: DC 100mV @ 100μA (sensitive low-power switching capability)
3. Service Life
* Mechanical Life: Exceeds 20 million cycles (tested at 180 operations per minute)
* Electrical Life: 100,000 cycles or more (under conditions: 3A @ 250V AC / 30V DC, resistive load)
These specifications ensure the relay delivers consistent performance across industrial, automotive, or IoT applications requiring
robust switching with precise control.
Products Description
Relay Module
QMY416N
