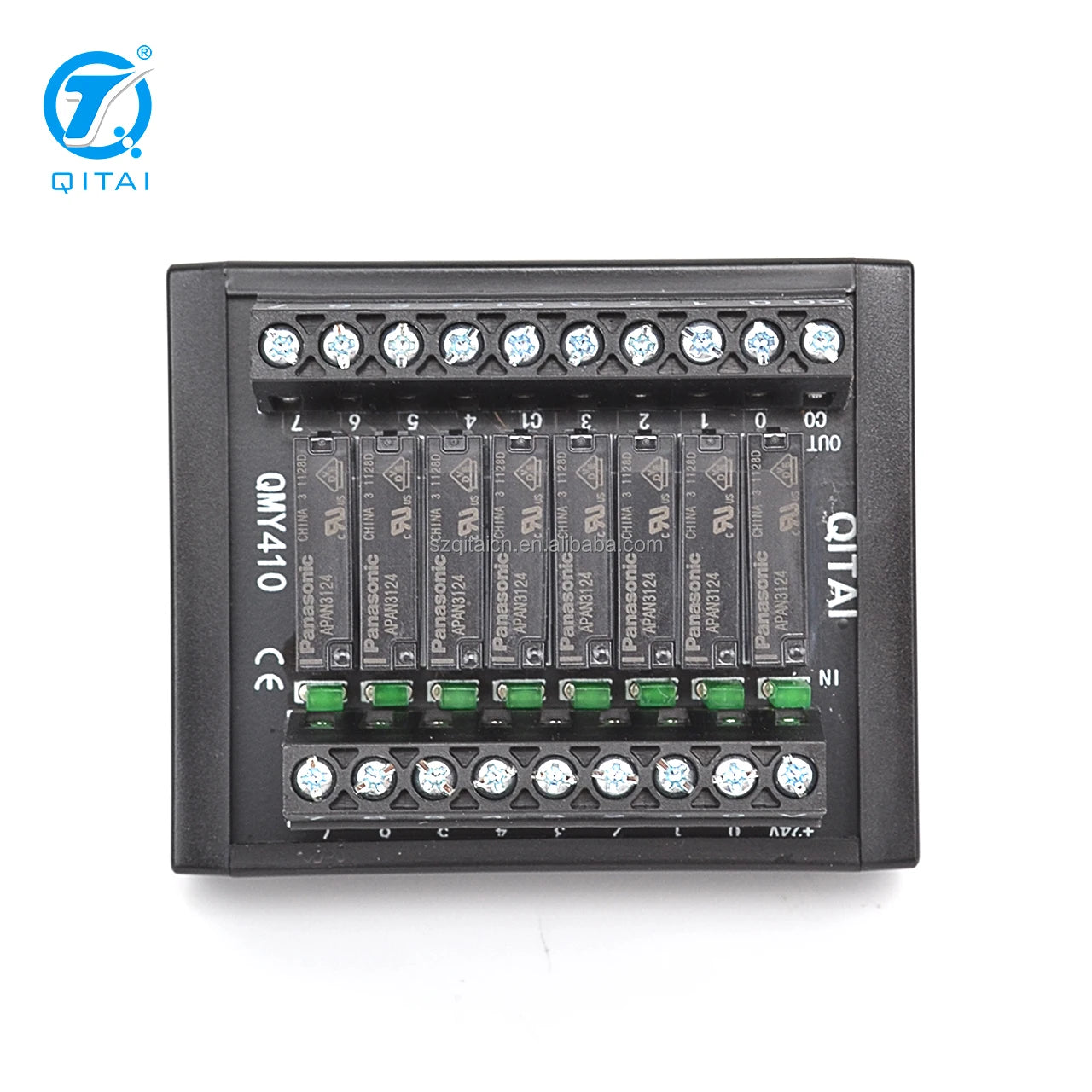

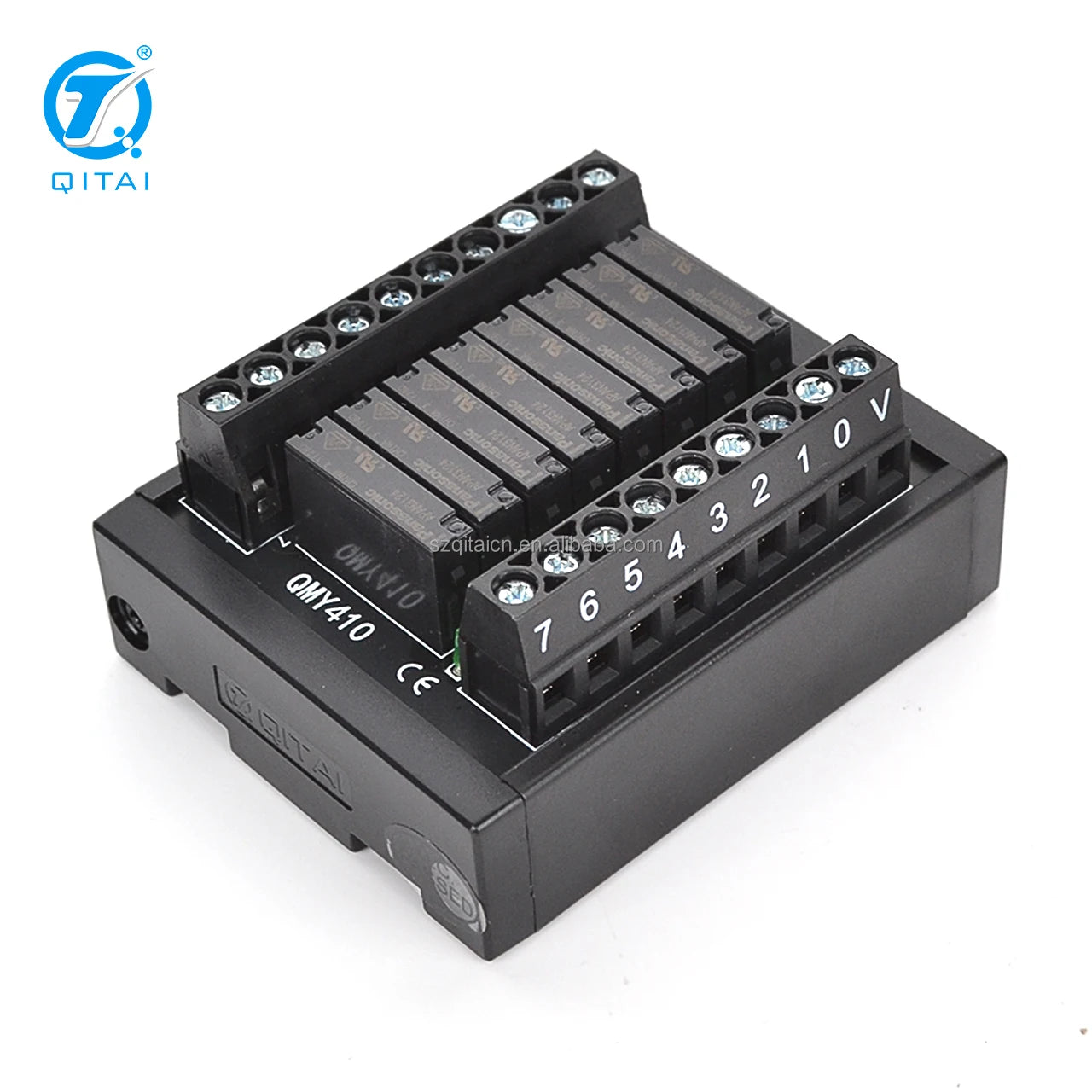

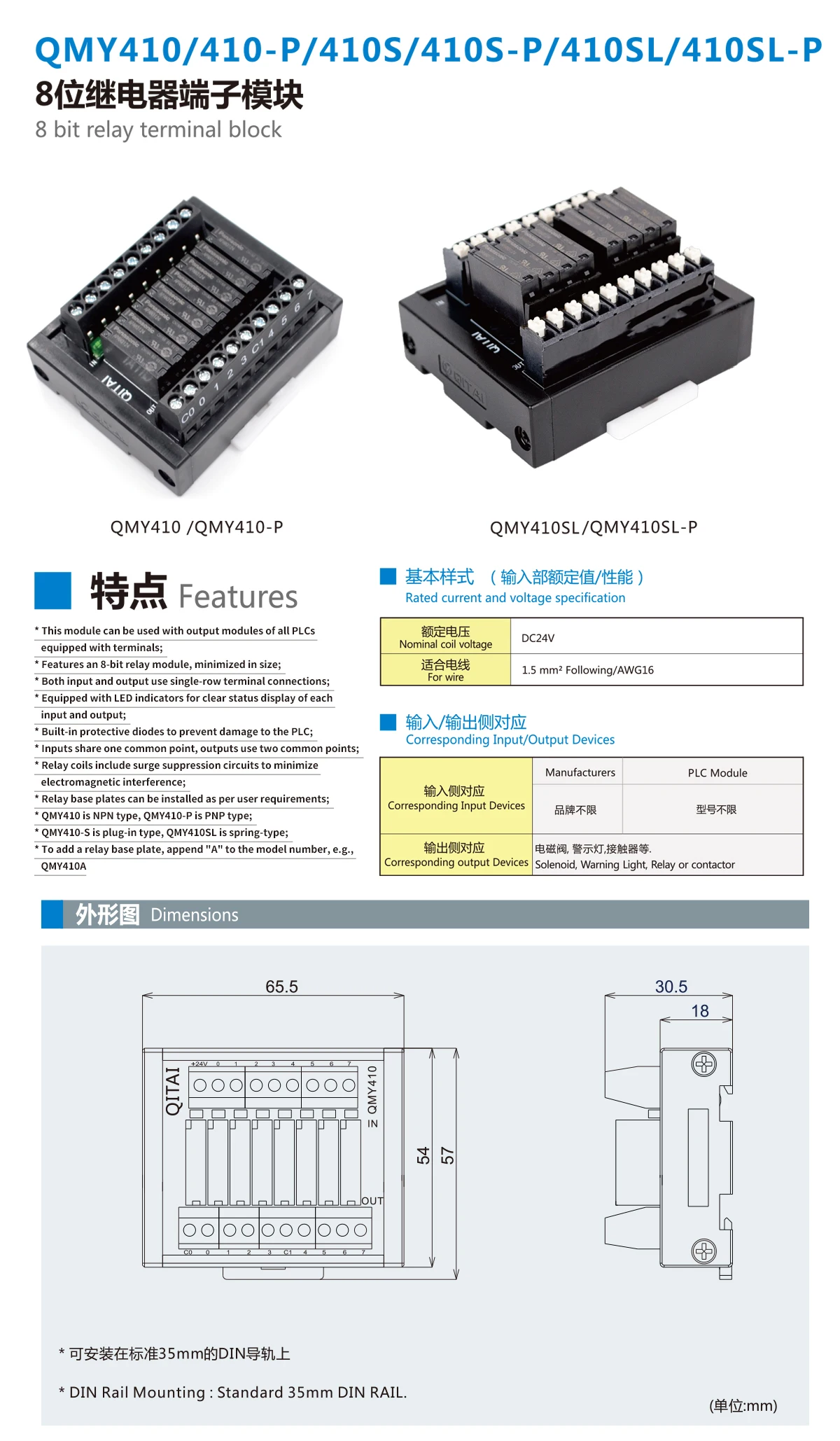

QMY410 8-Bit Relay Module APAN3124 DC24V Input 5A 250VAC

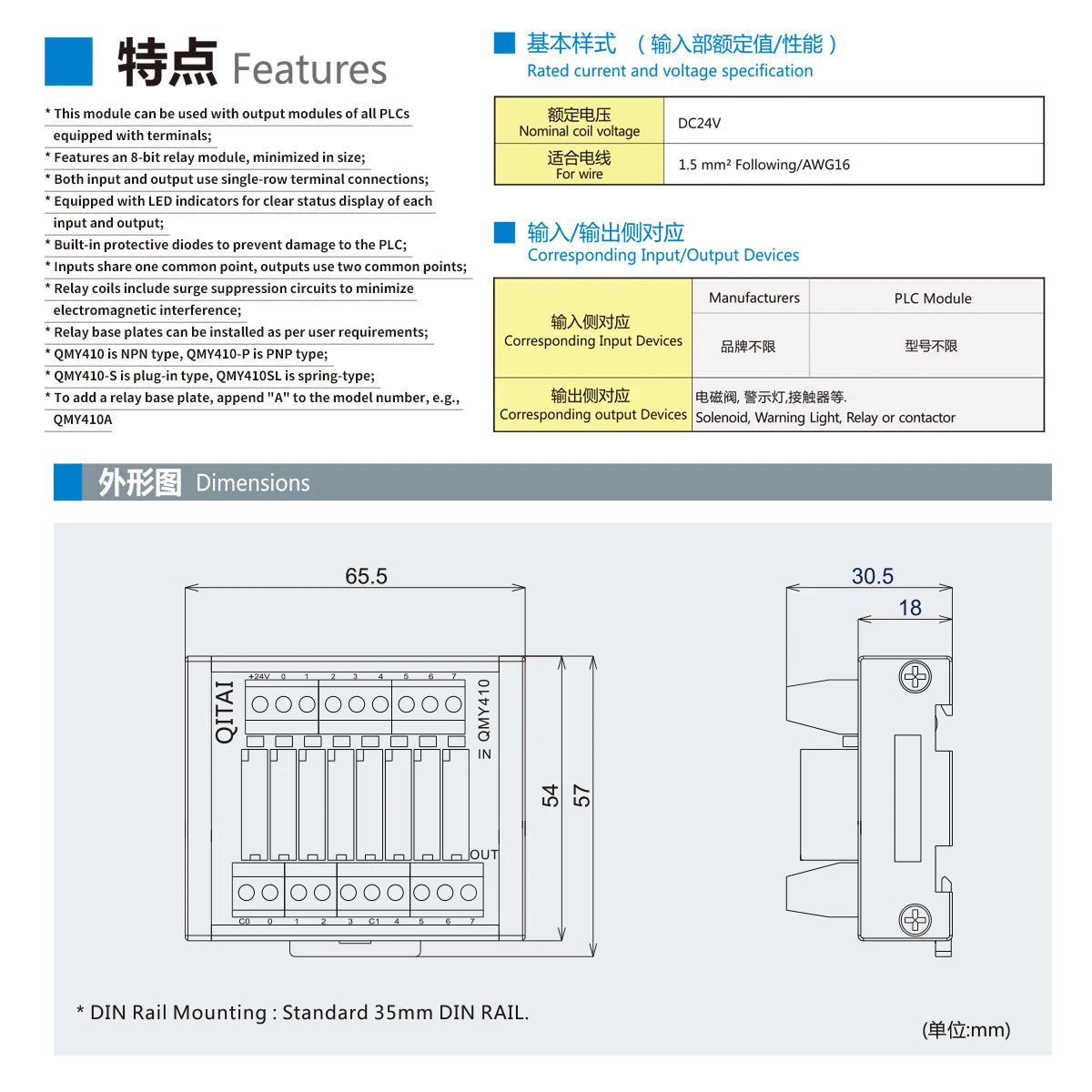

This relay module can be used with output modules of all PLCs equipped with terminals;
Features an 8-bit relay module, minimized in size;
Both input and output use single-row terminal connections;
Equipped with LED indicators for clear status display of each input and output;
Built-in protective diodes to prevent damage to the PLC;

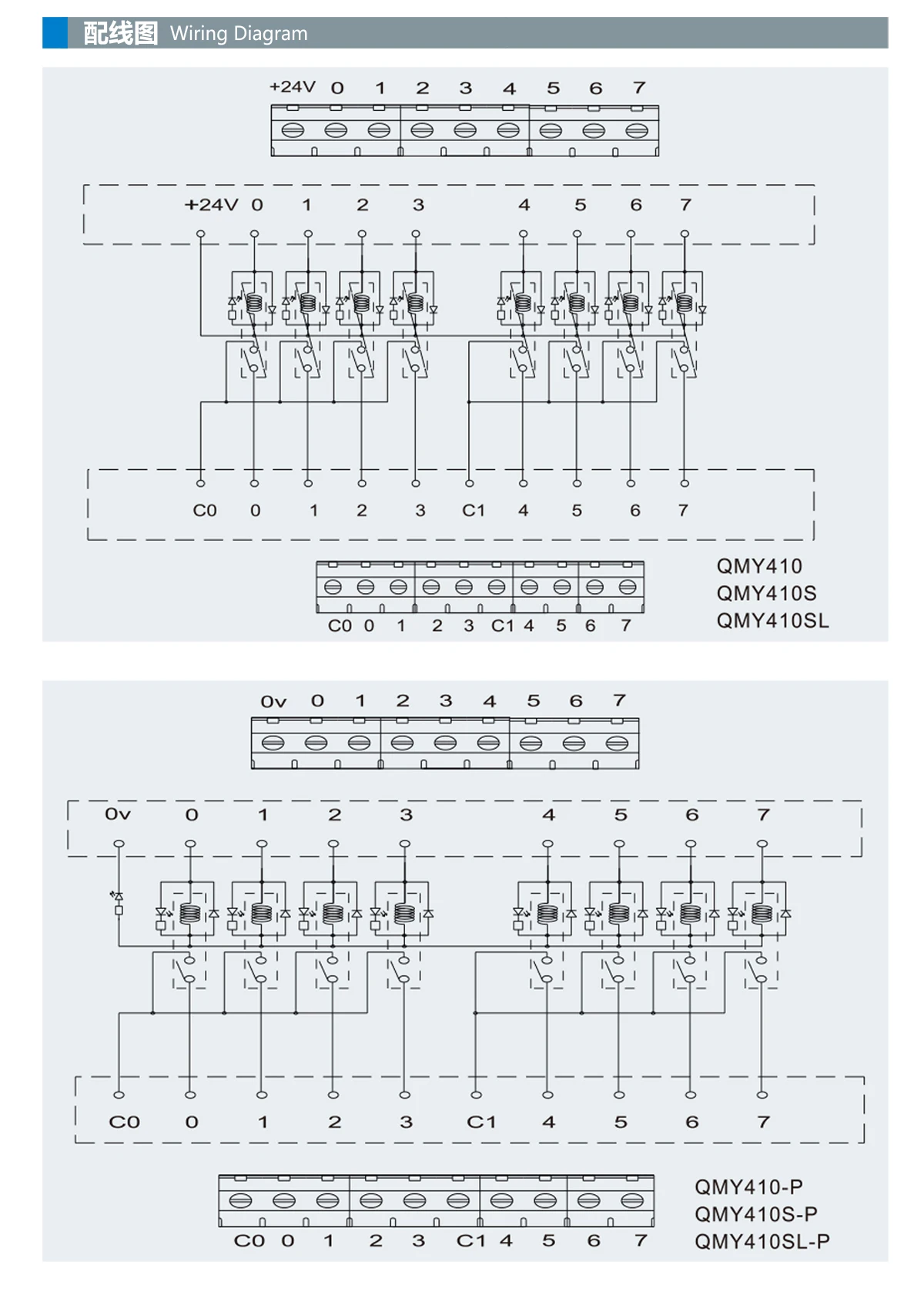

Inputs share one common point, outputs use two common points;
Relay coils include surge suppression circuits to minimize electromagnetic interference;
Relay base plates can be installed as per user requirements;
QMY410 is NPN type, QMY410-P is PNP type; * QMY410-S is plug-in type, QMY410SL is spring-type;
To add a relay base plate, append "A" to the model number, e.g., QMY410A
Shenzhen Qitai Technology Co., Ltd. is a national high-tech enterprise and ISO9001/14001/45001 certified manufacturer of industrial terminal blocks, relay modules, connectors and automation cables. All products are CE/RoHS certified and available factory direct. Contact our engineers for technical support and free samples.

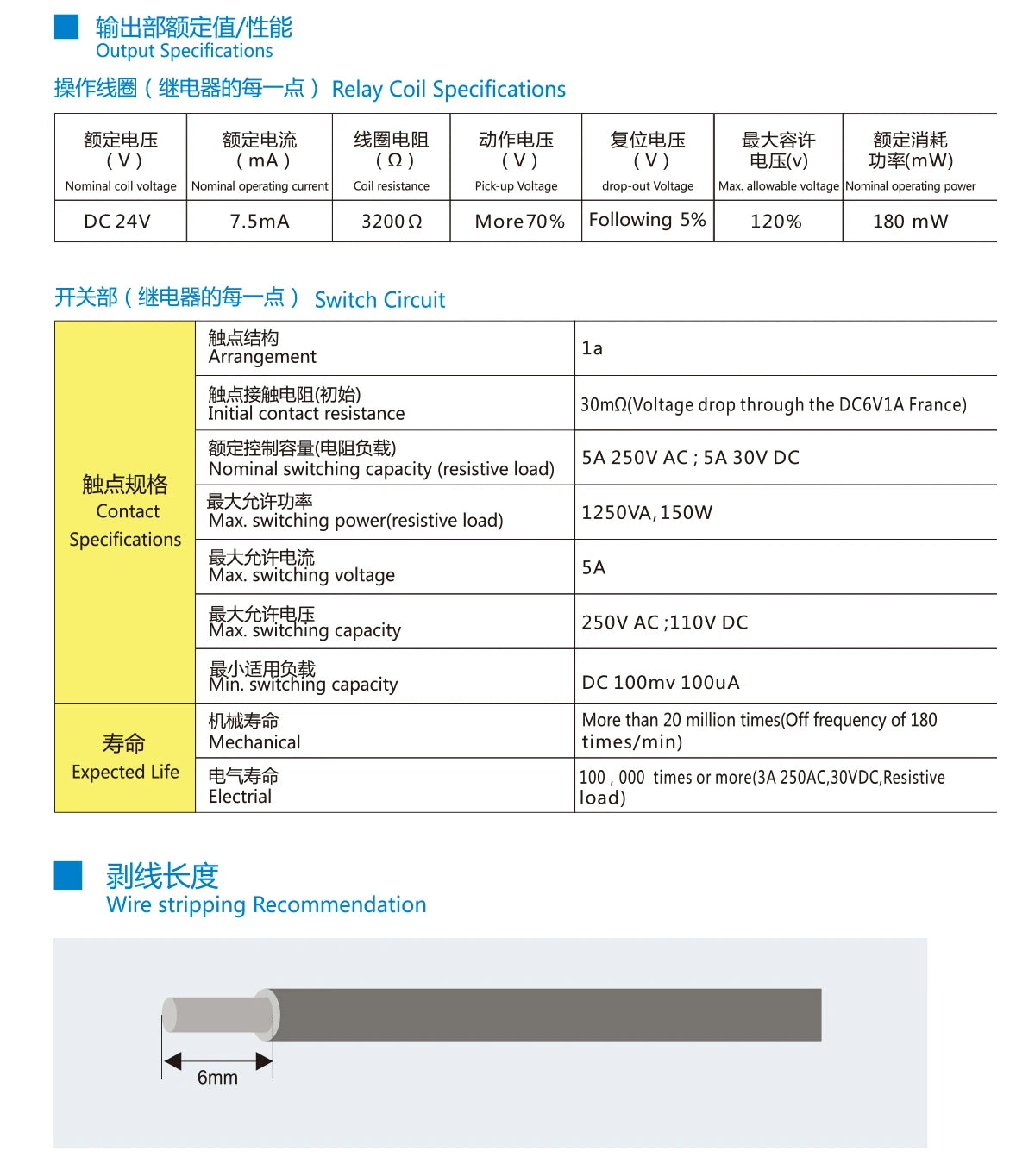

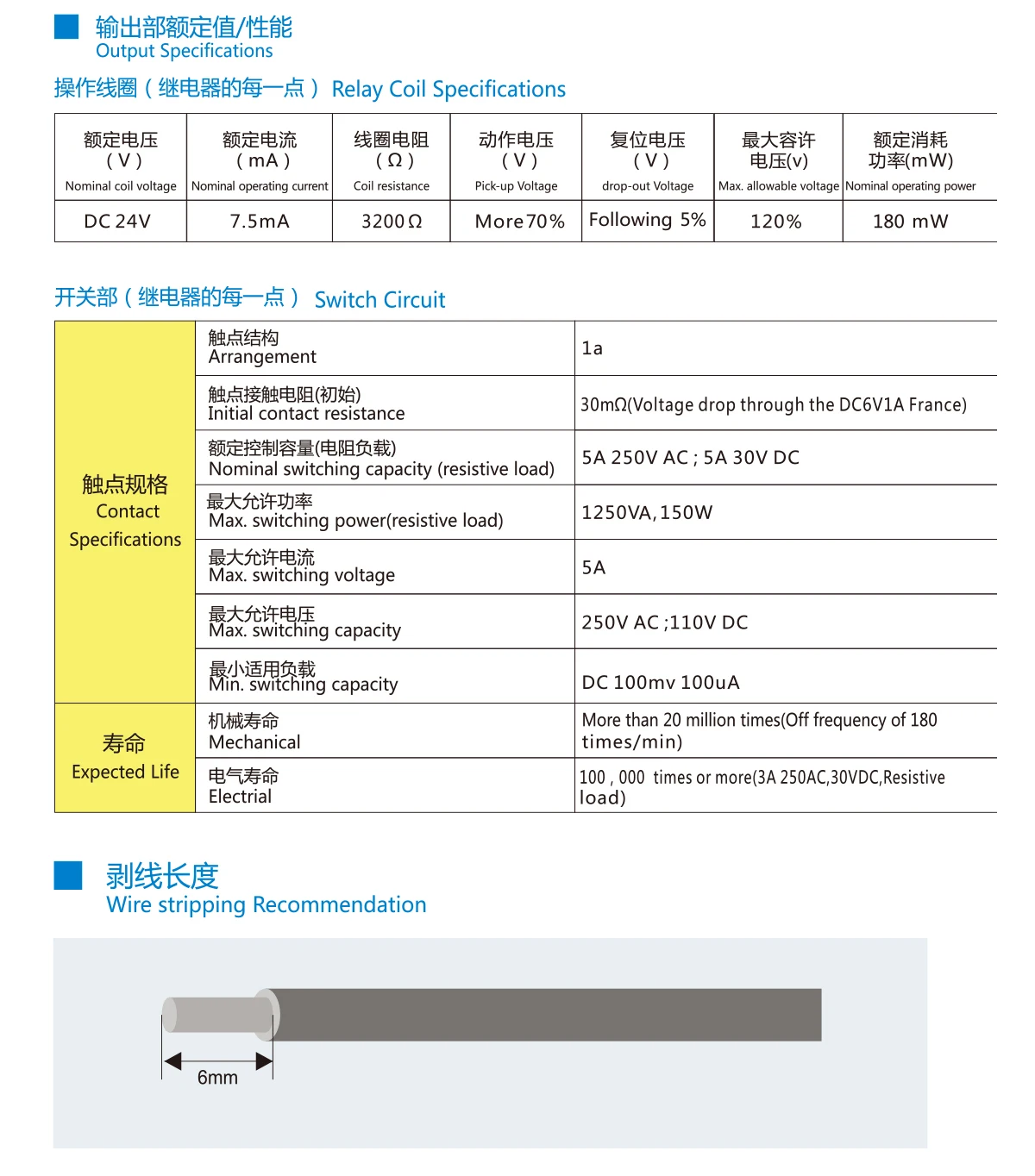

Key Specifications

Parameter	Value
Channels	8-bit
Relay	APAN3124
Input voltage	DC 24 V
Contact rating	5 A 250 VAC / 30 VDC
Mounting	DIN rail with socket

Key Features

• Channels: 8-bit
• Relay: APAN3124
• Input voltage: DC 24 V
• Contact rating: 5 A 250 VAC / 30 VDC
