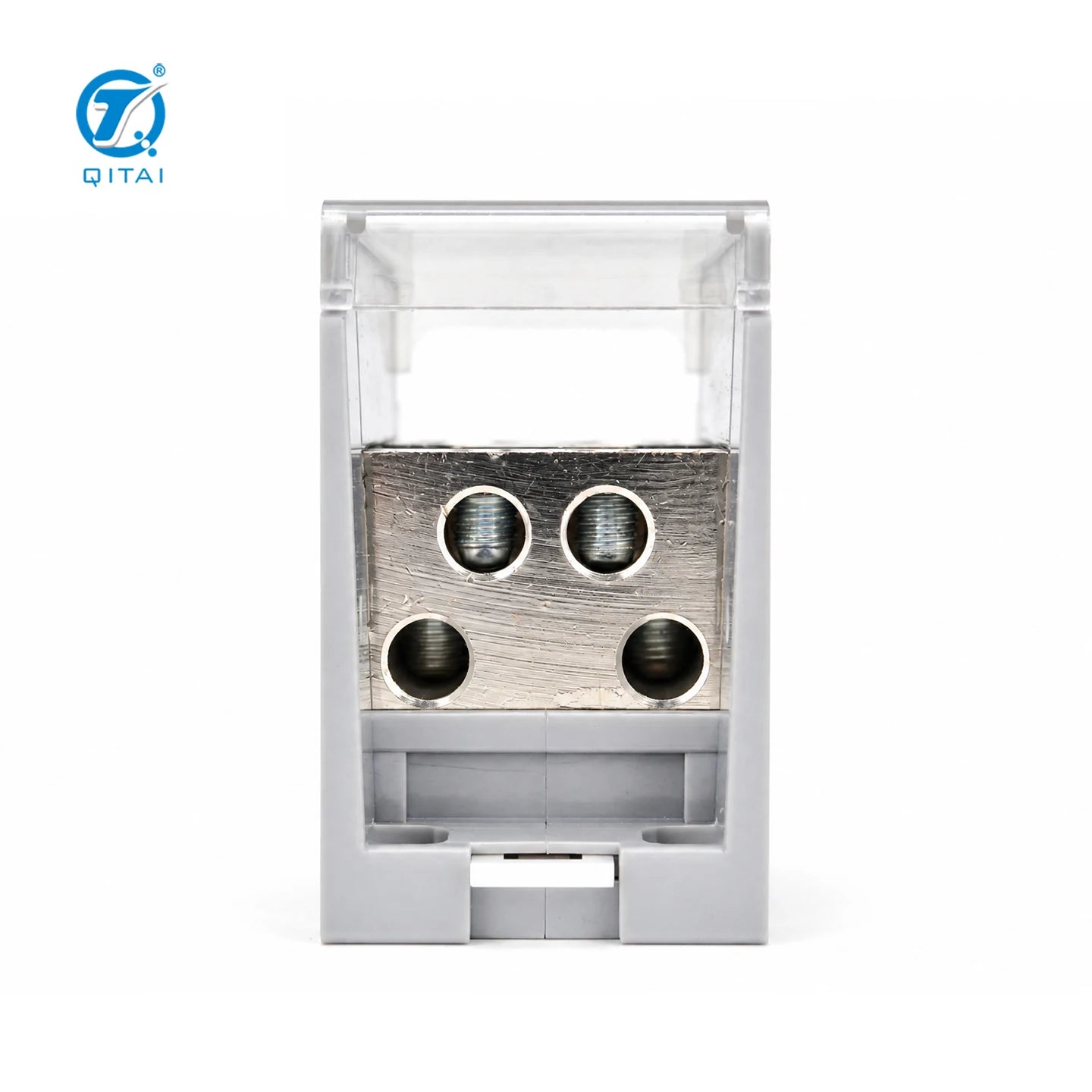

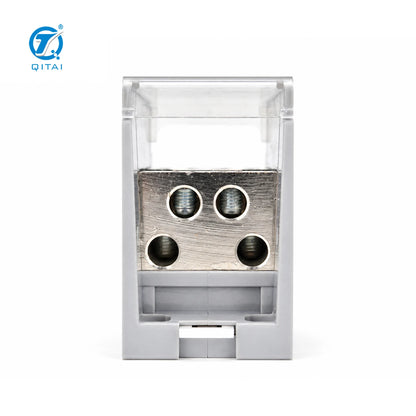

QJFX-2x70-4x16 Multi-purpose Busbar Terminal Block 690V 2 in 4 Out DIN Rail TH35 for Power Distribution

Multi-purpose application: Suitable for busbars, high-current terminals, neutral/grounding terminals, and equipotential bonding terminals (690V insulation / 380V operating voltage)
Wire size range: 2.5-300 mm²; input up to 2x70 mm² and output up to 4x16 mm² are all covered by the series
Installation options: Direct mounting with baseplate screws or TH35-7.5 rail;
multi-layer wiring connects to the bottom layer first;
extended bottom depth accommodates long terminals and bare tube terminals

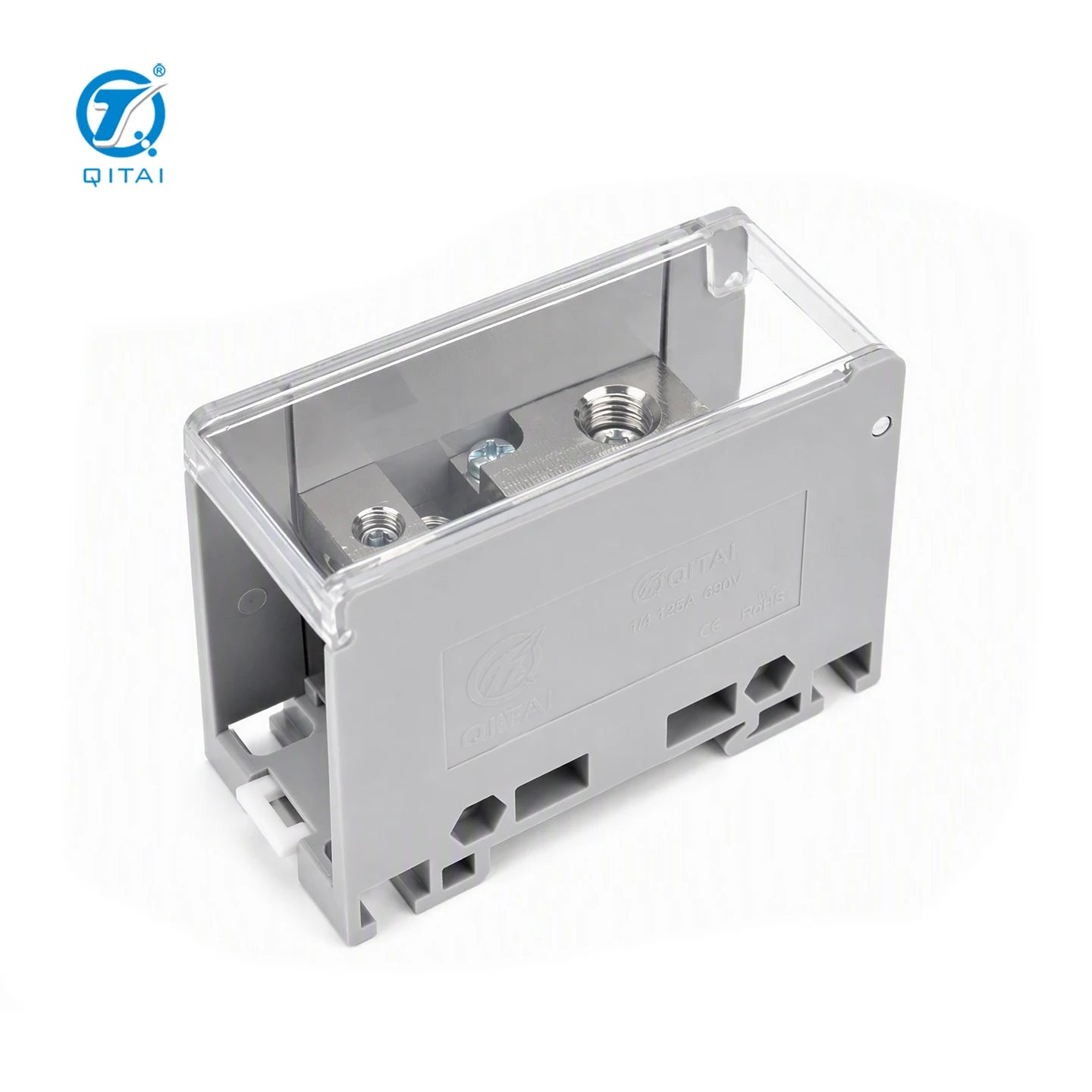

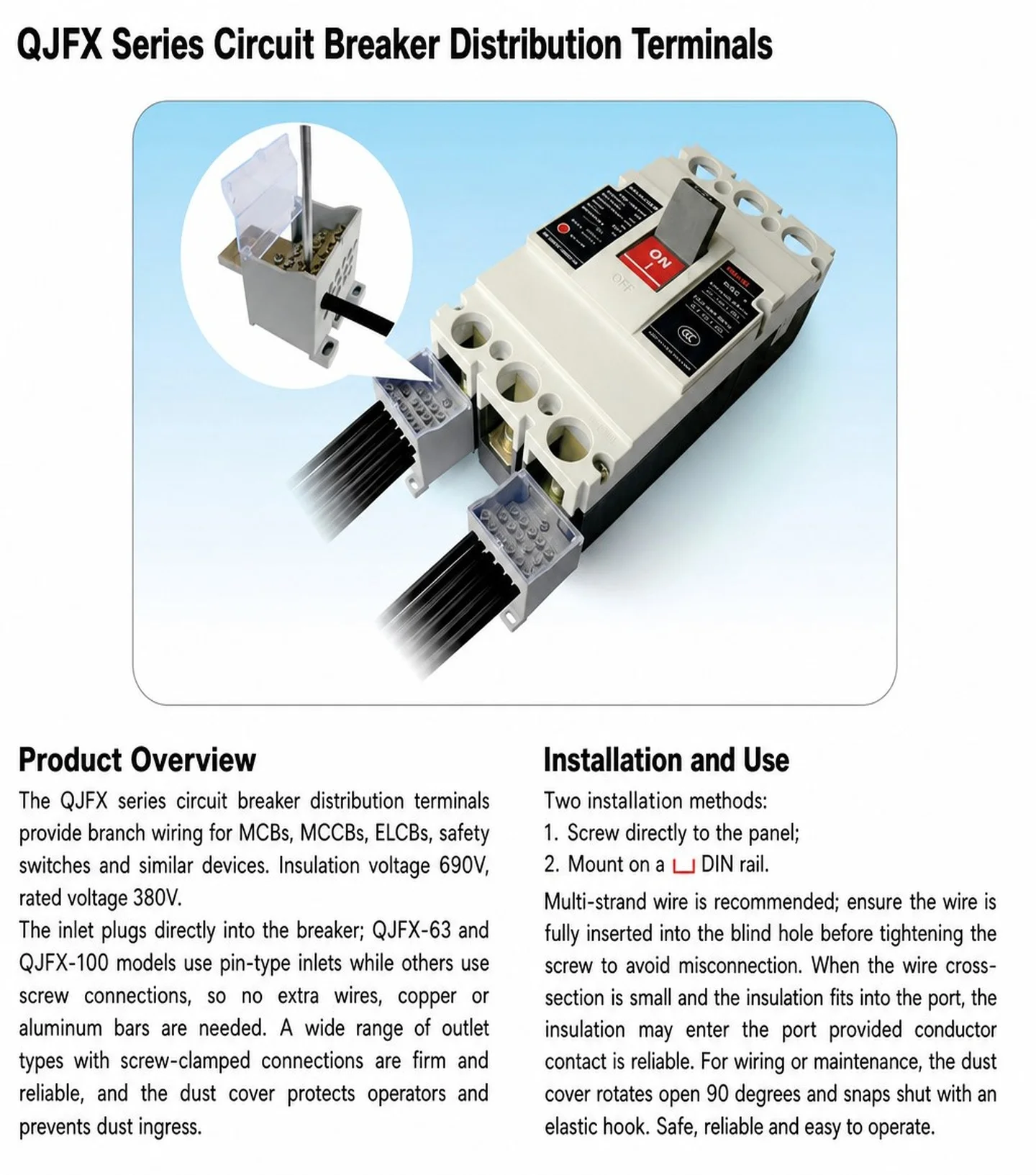

Protection: Optional TF protective barrier; transparent dust cover rotates 90° for maintenance (circuit breaker branch type)

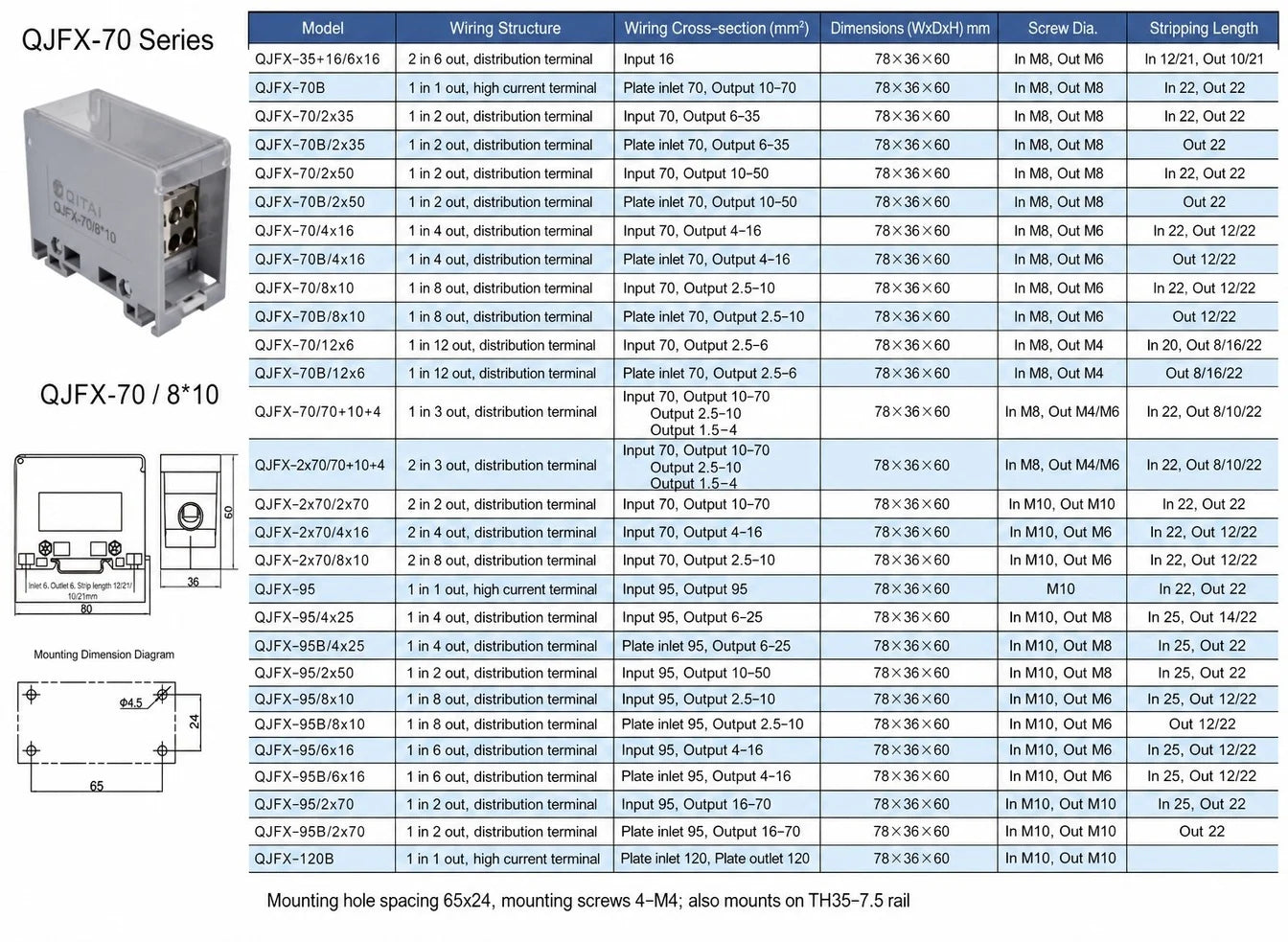

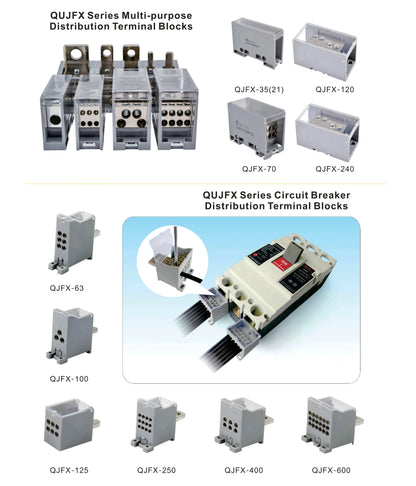

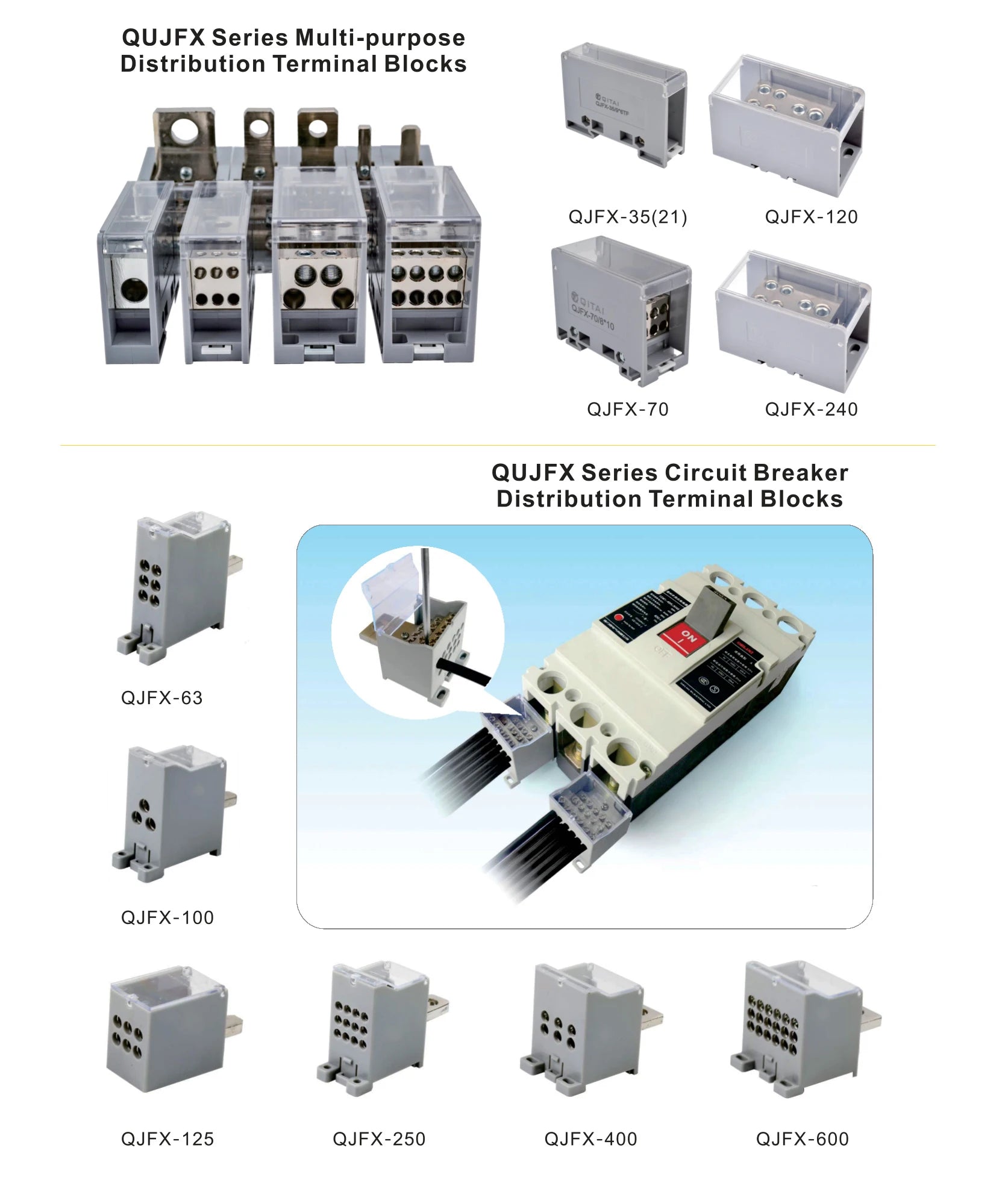

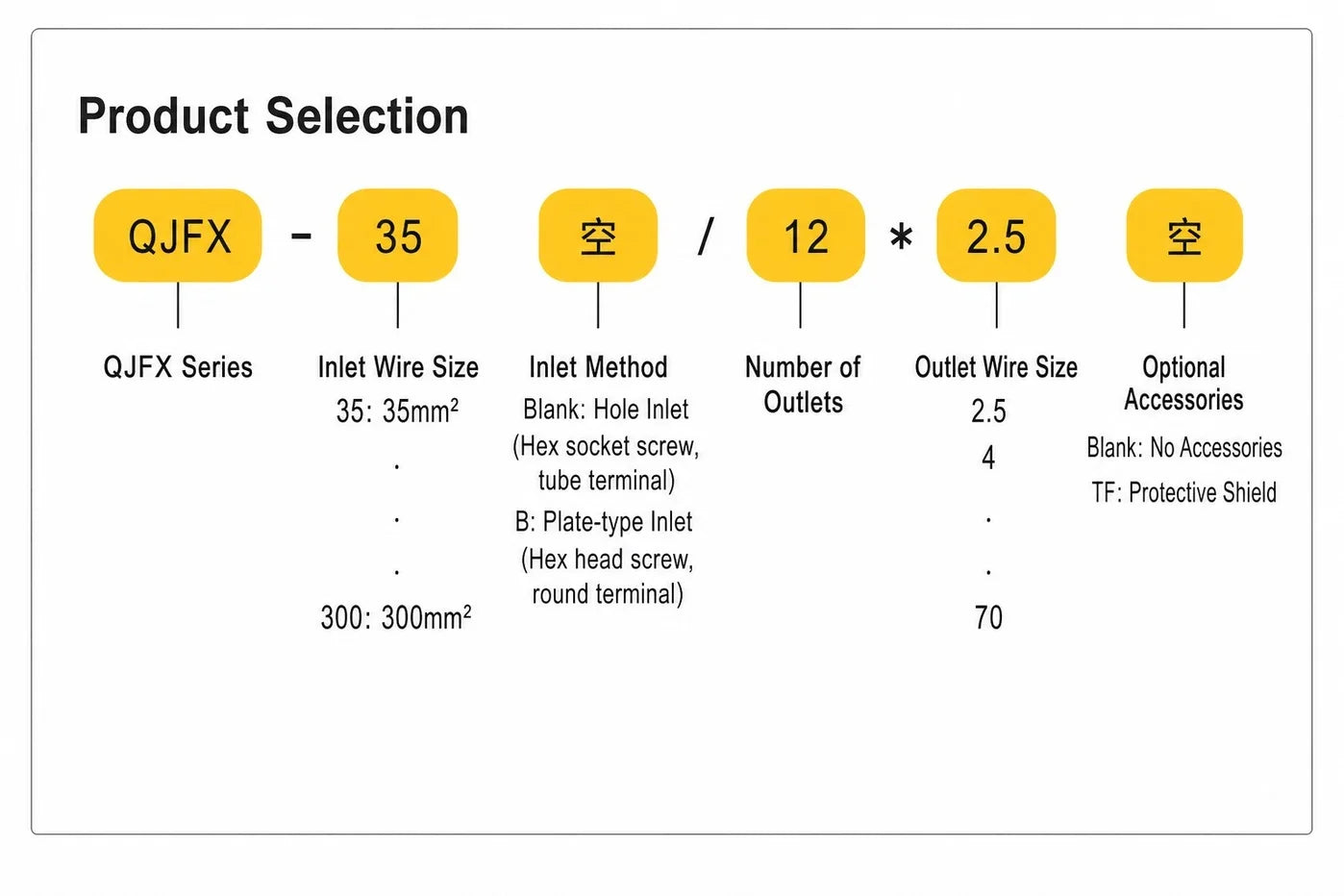

QJFX series offers a wide range of models (QJFX-35 / 70 / 120 / 240 / 400 / 600 types, from 1-in-2-out to 1-in-40-out)
