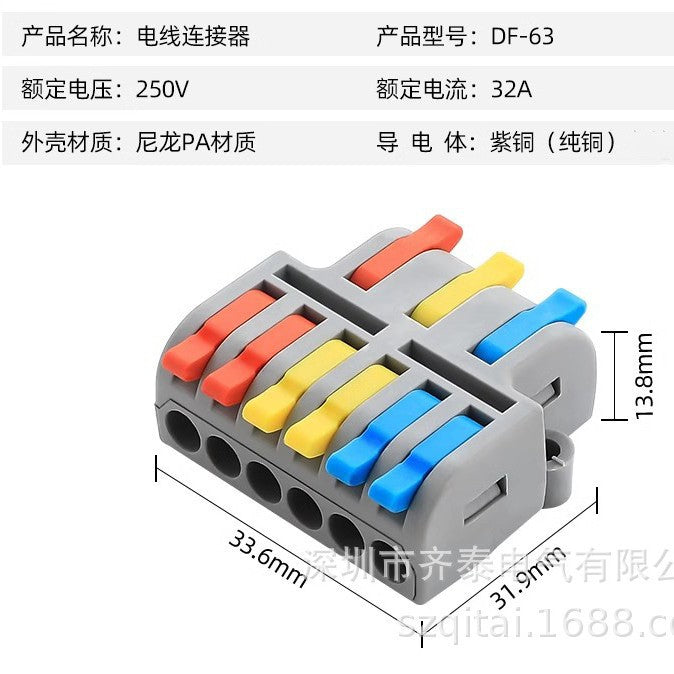

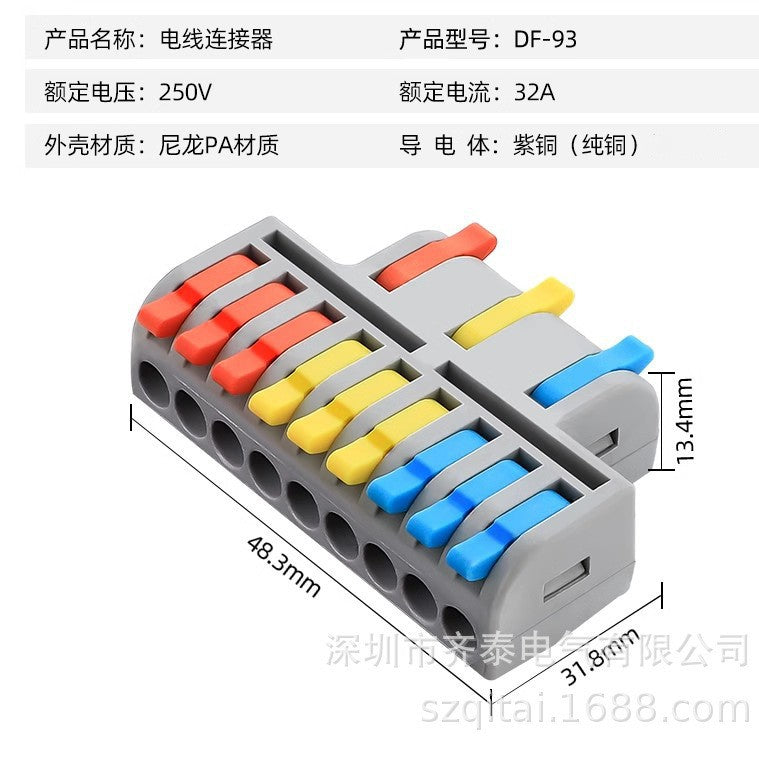

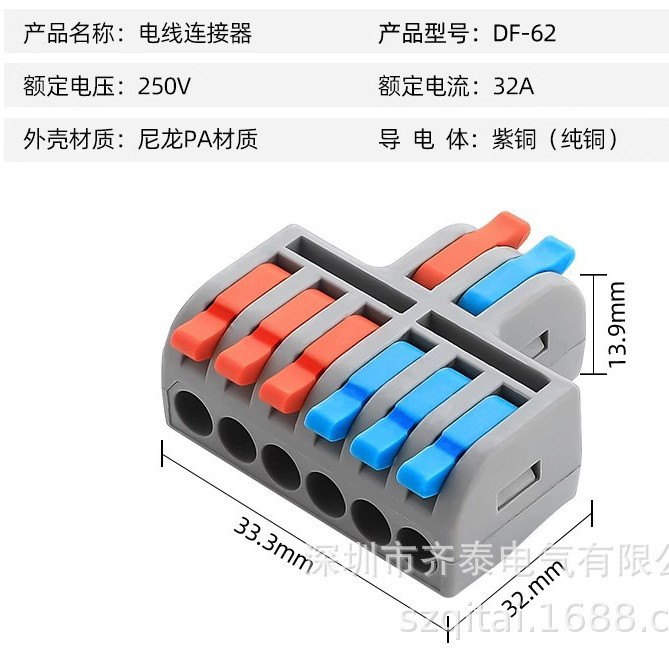

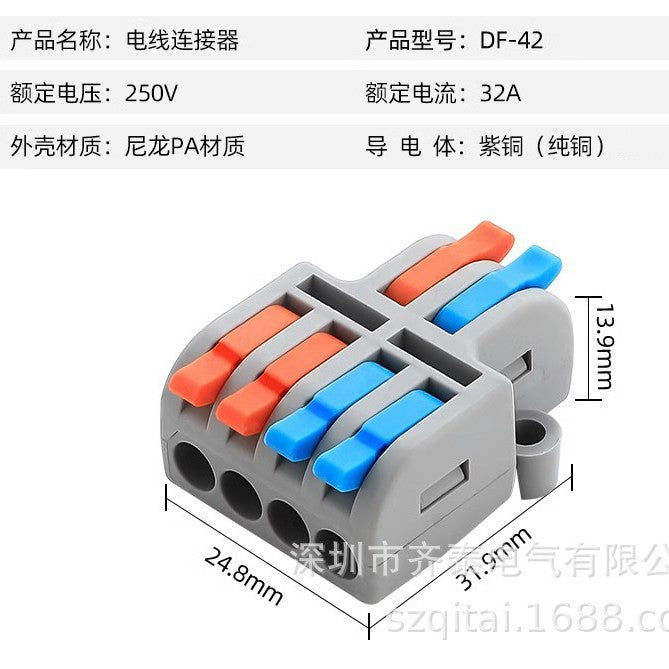

QDF-4 1-in Multi-out Wire Splitter Terminal Block 32A 250V

QDF-4 Series 1-in multi-out wire splitter terminal block.
Rated current 32A, rated voltage 250V, rated wire cross-section 4 mm²;
Plug-in push-to-connect design, wire stripping length 8-10mm;

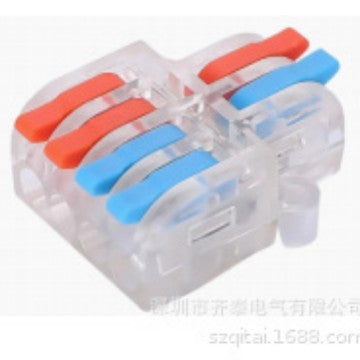

Four models: QDF-4-42, QDF-4-62, QDF-4-63, QDF-4-93; transparent PC housing versions available;
Application: industrial control, automation and power distribution.
QDF-4 Series Specifications:
Series: QDF-4
Type: 1-in multi-out wire splitter / quick connect terminal block
Rated current: 32A
Rated voltage: 250V
Rated wire cross-section: 4 mm²
Installation: plug-in push to connect
Wire stripping length: 8-10mm
Models: QDF-4-42 / QDF-4-62 / QDF-4-63 / QDF-4-93 (transparent PC versions available)
Dimensions T×W×H: QDF-4-42 3.5×45×32mm, QDF-4-62 5.2×48.5×36.5mm, QDF-4-63 6.2×56×36.5mm, QDF-4-93 8.2×57.7×43.5mm
Application: industrial control and automation, power distribution
